TUF Ultrasonic Gas Flowmeter

TUF Ultrasonic Gas Flowmeter

The TUF ultrasonic gas flowmeter adopts a multi-path design, which helps reduce the influence of eddy currents and asymmetric flows on metering. It is a metering instrument with stability, high precision and high reliability, and supports multiple communication methods to meet the diverse needs of users. It can be widely used for the measurement of natural gas, alkanes and industrial inert gases in industries such as petroleum, chemical engineering, power and metallurgy, and is suitable for city gas measurement.

Main Advantages

Flowmeter

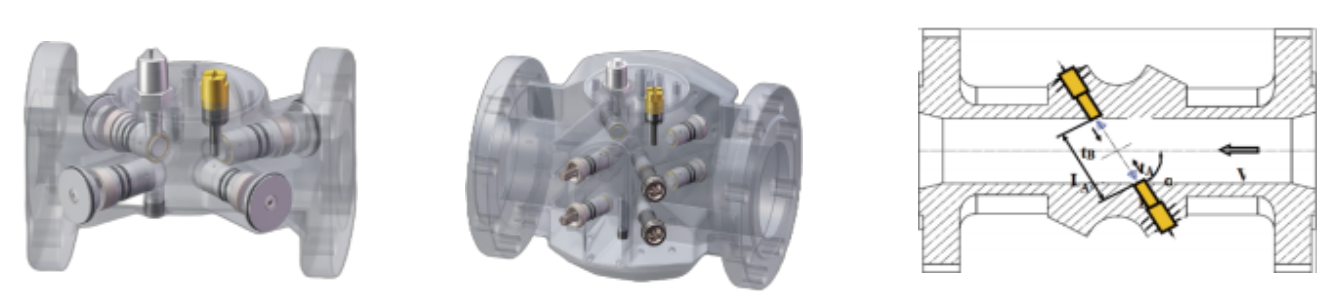

  • Multi-path measurement
  • Ultra-low starting flow
  • Rangeability up to 160:1
  • Eddy current and asymmetric flow detection
  • Intelligent fault detection and fault alarm
EVC
  • Integrates CPU card operation, volume correction calculation, IoT communication&valve control, compact structure
Valve Control Function (when applicable)
  • Reliable ball valve control, Zero-pressure-loss design, valve diameter identical to pipeline

Principle

The ultrasonic flowmeter operates on the principle of measuring the relationship between the time it takes for sound waves to propagate in a flowing medium and the flow rate. It is generally believed that the actual propagation speed of sound waves in a fluid consists of the propagation speed of   sound waves in the medium at rest and the component of the fluid’s axial average velocity in the direction of sound wave propagation.

Requirements for Installation of Straight Pipe Sections

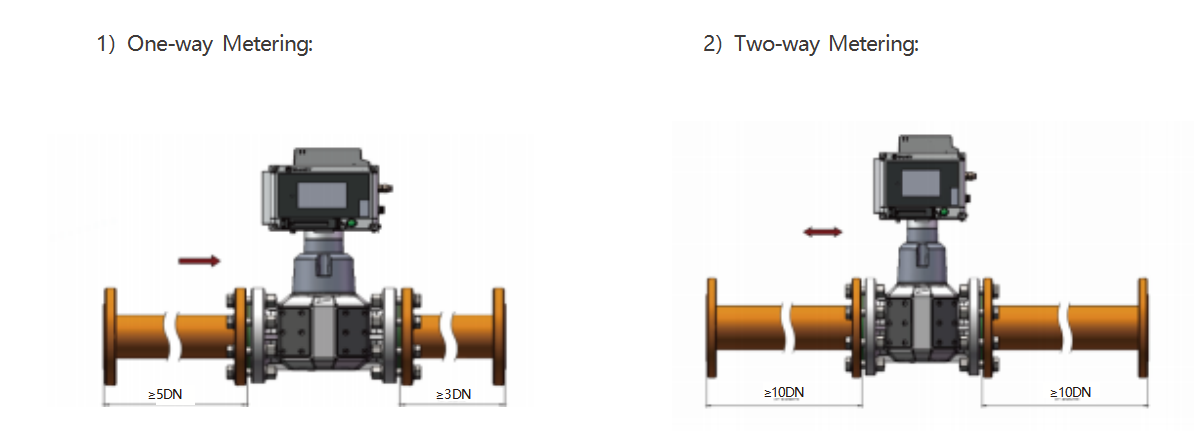

Installation: In the fluid direction, for one-way metering, the straight pipe section should be at least 5DN upstream and 3DN downstream. For two-way metering, the straight pipe section should be at least 10DN upstream and 10DN downstream.

Additionally, there should be no flow-disturbing elements in the inlet direction of the straight pipe section.

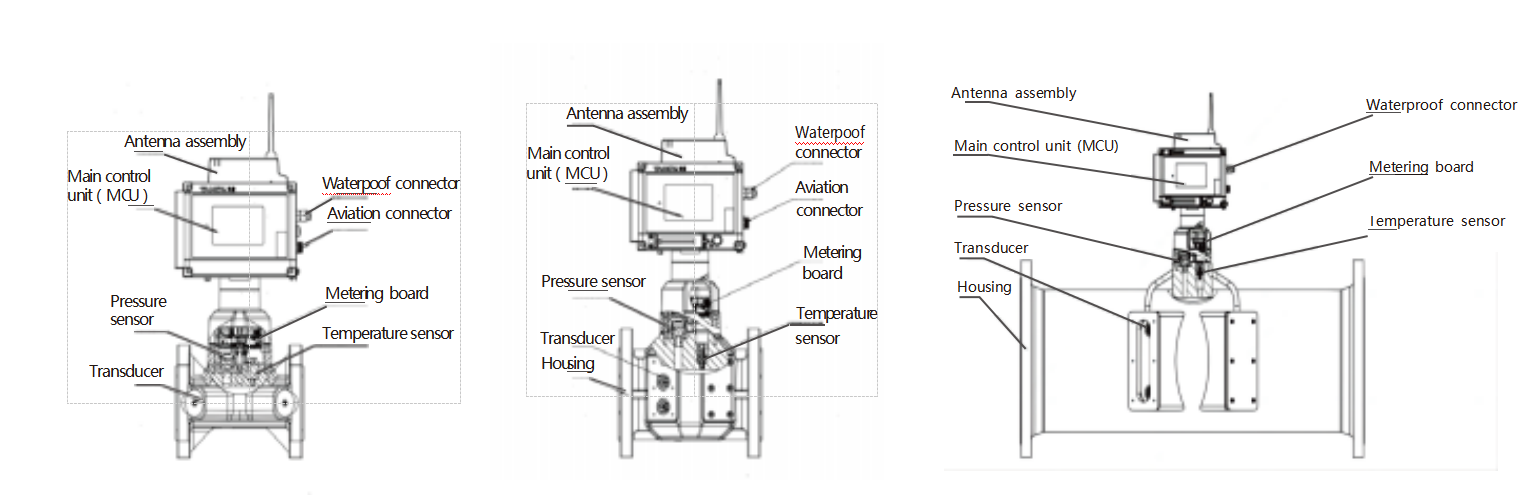

Product Structure Diagram

Model DN L H1 H C D K n×L
TUF-DN25 25 200 391 483 200 115 85 4×ø14
TUF-DN32 32 200 403 495 200 140 100 4×ø18
TUF-DN40 40 200 418 510 200 150 110 4×ø18
TUF-DN50 50 200 425 517 200 165 125 4×ø18
TUF-DN80 80 240 483 575 213 200 160 8×ø18
TUF-DN100 100 300 500 590 251 220 180 8×ø18
TUF-DN150 150 450 555 647 307 285 240 8×ø22
TUF-DN200 200 600 620 712 356 340 295 12×ø22
TUF-DN250 250 750 780 870 414 405 355 12×ø26
TUF-DN300 300 900 830 920 483 460 410 12×ø26
