TEC-I Volume Corrector

TEC-I Volume Corrector

The TEC-I electronic volume corrector is used for the measurement of gas volume and energy under base conditions. It is designed for use at gas metering stations and pressure reduction and metering stations and can be also used with rotor and turbine gas meters.

Main Advantages

  • Core Functions
    Site monitoring, archiving of selected parameters and recorded alarm status information
  • Communication Configuration
    Optional integrated modem supporting 4G LTE Cat.1 and 3G, 2G networks
  • Hardware Design
    Cost-effective polycarbonate (PC) material and membrane switch buttons
  • Sensing Solutions
    Internal or external pressure and temperature sensors

Technical Specifications

Model DN
(mm)		 Pressure
(MPa)		 Accuracy
(m³ /h)		 Starting Flow
Rate(m³/h)		 Ex-factory Shear
Flow(m³/ h)		 Q min
(m³ /h)		 Q max
(m³ /h)		 Path
TUF-DN25 25 0.10 0.33 0.4 40
TUF-DN32 32 0.10 0.33 0.4 65 2-path
TUF-DN40 40 0.20 0.33 0.6 100
TUF-DN50 50 0.30 0.66 1.0 160
TUF-DN80 80 1.6 ±1.0% 0.60 1.66 2.5 400
TUF-DN100 100 ±1.5% 1.00 3.00 4.0 650
TUF-DN150 150 2.00 6.66 10 1600 4-path
TUF-DN200 200 3.00 11.66 15 2500
TUF-DN250 250 5.00 18.33 25 4000
TUF-DN300 300 8.00 26.66 40 6500

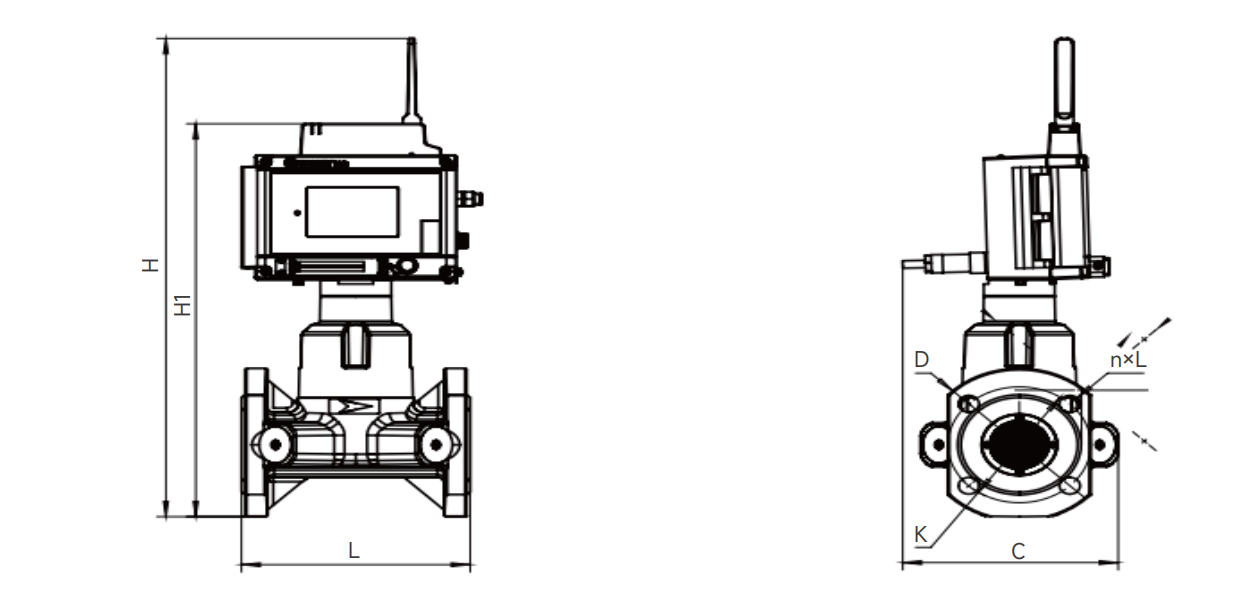

Dimensions

Model DN L H1 H C D K n×L
TUF-DN25 25 200 391 483 200 115 85 4×Ø14
TUF-DN32 32 200 403 495 200 140 100 4×ø18
TUF-DN40 40 200 418 510 200 150 110 4×Ø18
TUF-DN50 50 200 425 517 200 165 125 4×ø18
TUF-DN80 80 240 483 575 213 200 160 8×ø18
TUF-DN100 100 300 500 590 251 220 180 8×ø18
TUF-DN150 150 450 555 647 307 285 240 8×ø22
TUF-DN200 200 600 620 712 356 340 295 12×x22
TUF-DN250 250 750 780 870 414 405 355 12×26
TUF-DN300 300 900 830 920 483 460 410 12××26
