TEC-lIl Volume Corrector

Main Advantages

• Housing Material
  Aluminum alloy casing, suitable for outdoor installation
• Communication Module Configuration
  Built-in replaceable GSM/GPRS modem module
• Optical Communication Interface
  Optical communication interface powered by battery (no external power required)
• Measurement Error Control
  Capable of controlling measurement error within permissible limits
• Pressure Range
  Wider pressure range available
• EMC Performance
  Higher level of electromagnetic compatibility

Installation

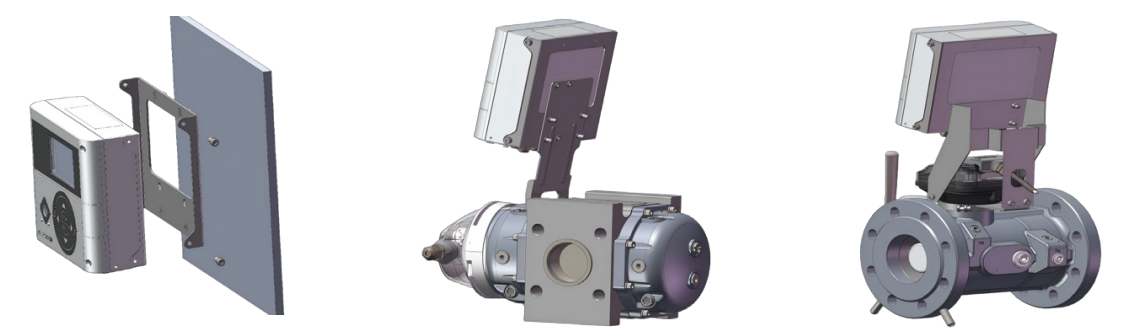

TEC provides a variety of mounting brackets, allowing customers to choose different installation methods, such as installation on a wall
or pipeline, or directly on a turbine or rotary flowmeter (flowmeter specifications must be checked before installation).
In addition to the sealing points designated by the metrological authority, TEC has other external sealing holes, which can be used to
prevent unauthorized opening of the device.

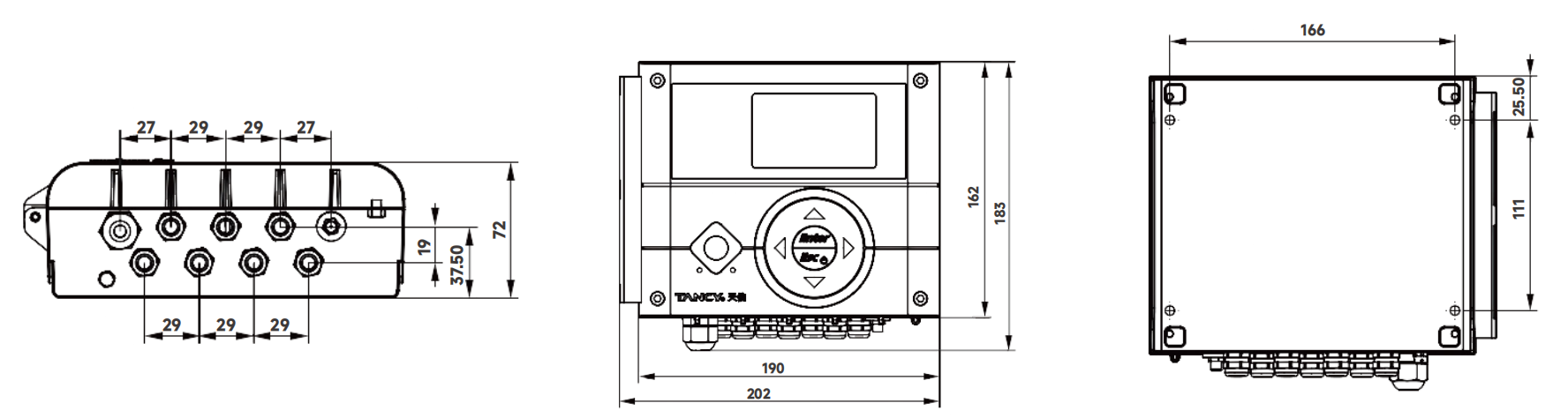

Dimension

Communication

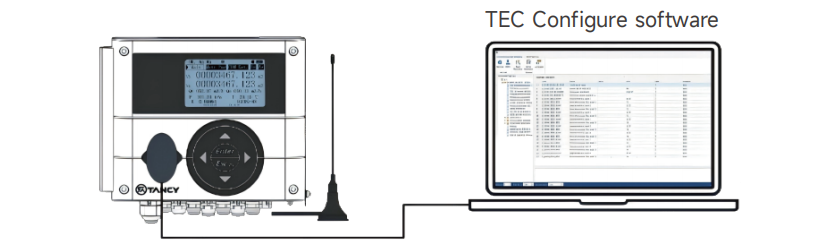

• The TEC supports communication via an optical interface connector for configuring temporary parameters and reading historical logs.

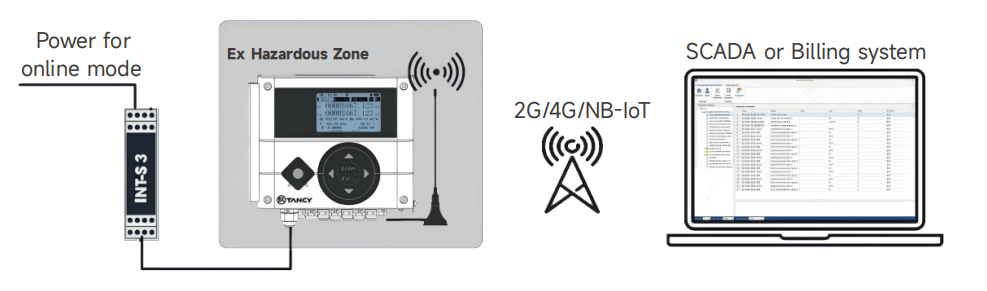

• The TEC can directly transfer data to the system via the built-in GSM 2G, 4G, NB-IoT modem powered by internal batteries or external power for real-time online mode.

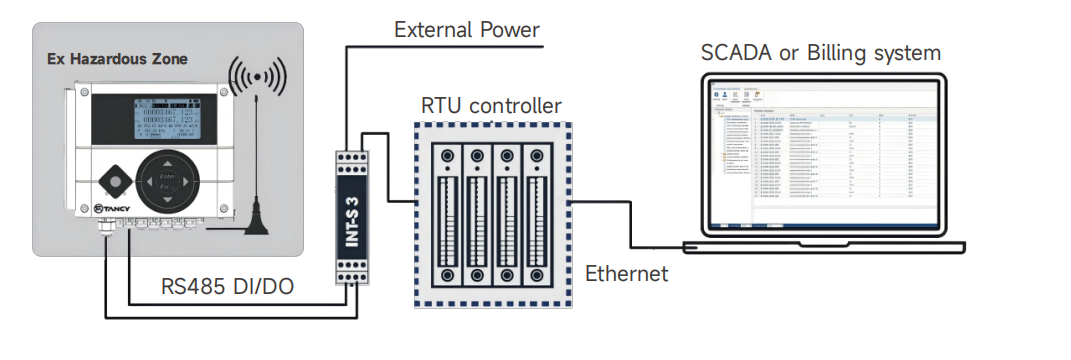

• The TEC supports remote data reading via RS485 serial communication interfaces with the INT-S3 and RTU controller, independently.
