Aluminum Series Diaphragm Gas Meter

Aluminum Series Diaphragm Gas Meter

The Aluminum series diaphragm gas meter, featuring an aluminum housing, is independently designed and developed. It exhibits precise and stable measurement capabilities, along with a long service life. Its compact structure and ease of installation render it highly suitable for environments with limited space.

Features

  • Corrosion Resistance
    The aluminum housing offers excellent corrosionresistance
  • Compact Design
    Non-independent movement cores guarantee a small form factor and facilitate easy installation
  • High Performance
    An adjustable mechanical core is employed to ensure high accuracy and long-term operational stability
  • Remote Meter Reading
    A magnetic pulse output interface is reserved forthe purpose of remote meter reading upgrading

Technical Parameter

Type Unit G1.6 G2.5
Enclosure Material Aluminum
Cycle Volume dm³ 0.9 0.9
Qmax m³/ h 2.5 4.0
Qt m³/ h 0.25 0.4
Qmin m³/ h 0.016 0.025
Accuracy Class – 1.5
MPE % Qmin≤Q<Qt:±3%;Qt≤Q≤Qmax:1.5%
Max Working Pressure bar 0.5
Pressure Absorption mbar ≤2.0
Gas Temperature Range ℃ -25℃~+55℃
Ambient Temperature Range ℃ -25℃~+55℃
Gas Group – Group H,L,E
Protection Level IP65

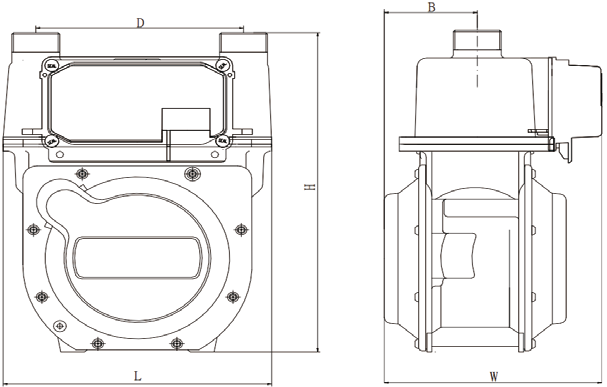

Dimensions

Note: The meter connector is customizable or can be used with adapters, offering flexible options.

Type G1.6/G2.5
Vc (dm³) 0.9
D (mm) 110/130
L (mm) 168
W (mm) 137
H (mm) 230
B (mm) 57
Thread G3/4″
