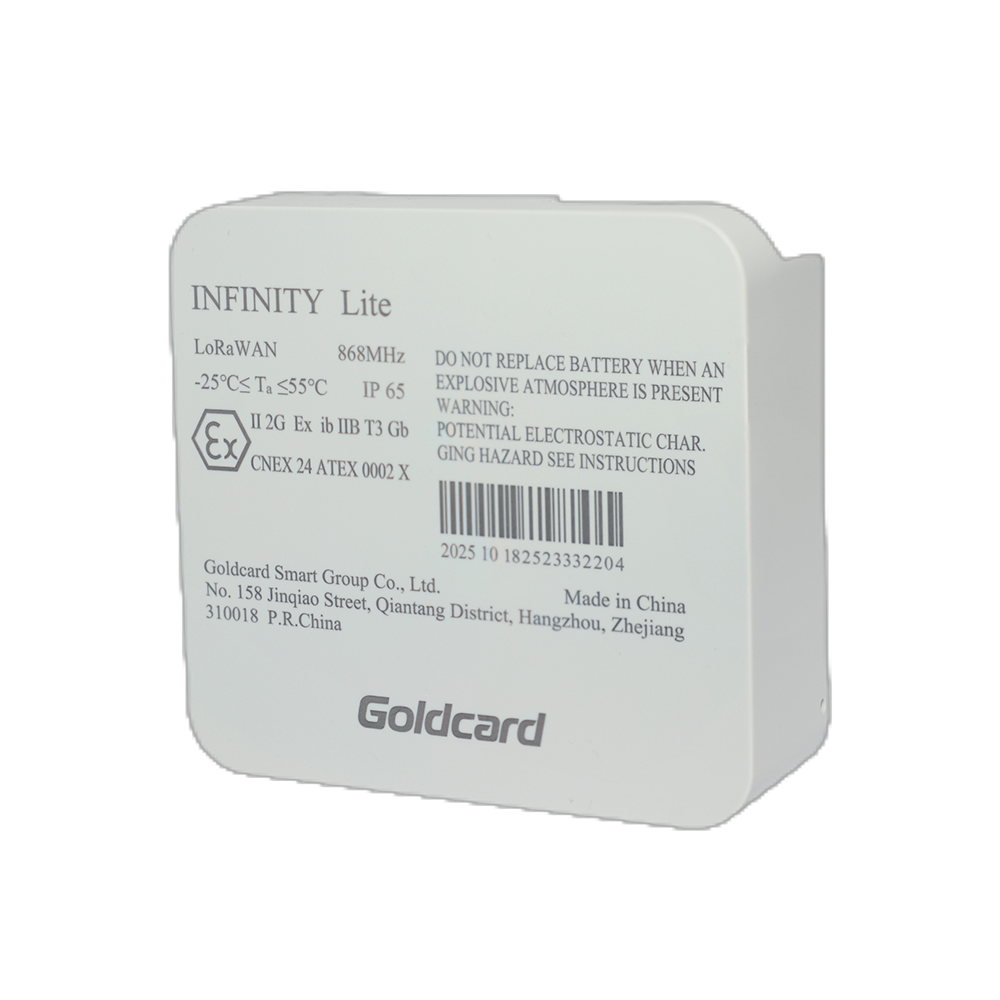

INFINITY Lite RemoteMeter Reading Module

INFINITY Lite RemoteMeter Reading Module

INFINITY Lite is a typical smart retrofit module which can be connected to different base meters, applicable for upgrading mechanical diaphragm gas meters into communication data points. It can incorporate a mechanical diaphragm gas meter with an external sampling structure to realize digital transformation without base meter replacement and guarantee ROI of meter assets.

Features

  • Cost-efficient
    Achieve remote meter reading with minimal investmen
  • Easy-installation
    Plug and play, no need to modify pipelines or disassemble/reinstall gas meters, no interruption of gas supply
  • Multiple Adapters
    Controller and adapter separate design, efficiently adapted to different meters on the market
  • On-site Meter Reading
    Professional App work with a Type-C adapter based on Android Phone for on-site meter reading and configuration(Only for LoRa)

Operation Principle

Diaphragm gas meters are typically fitted with a magnetic pulse output interface at the factory. This allows for the conversion of mechanical movement into electrical signals via sensing elements, and then into digital signals through an analog-to-digital converter, completing the electromechanical conversion and meeting the needs of automated meter reading.

Technical Parameter

Adaptive Flow Rate G1.6～G40
Sampling Resolution 0.01m³,0.1m³

-25℃~55℃
Ambient Temperature
Communication Method NB-loT/LoRaWAN

8～10 years

Once per day
Battery Supply
Reporting Interval
Consumption Data Storage
Hourly Log:30 days,Daily Log:1 year

IP65
Protection Level

Dimensions

L(mm) W(mm) H(mm) B(mm)
89 30 83 11
